SH-1810CCD
SHENHUI
Product Description
1. Adopt precise CNC technology, high controllable flight-path laser design and professional design software, can output cut samples immediately after design. Double heads increase working efficiency.
2. Adopt international high speed 32 bit DSP components SMART CARVER controller, with the technology of automatic compensation for brightness declines, smooth acceleration and deceleration control software design, optional high performance and high precision servo motor, will completely catch and excute instant electrical signal from automatic control system. With optional automatic feeding device, it's able to make continuous output processing.
Cloth, leather, woolens, paper, non-woven fabric, model, intertexture, bag and other non-metal materials
Clothing, embroidery cut, cloth toys, paper produtcs, leather goods, industrial ,model and other materials needing wide-format cutting, trimming and engraving
Technical parameters
Laser power | 80w~150w(optional) |
Power supply | AC220V±10% 50/AC220V±10% 60HZ |
Max processing area | 1800x1000mm/1600x1000mm |
Cutting speed | 0-30,000mm/min |
Locating precision | 0.03mm |
Operating temperature | 0-45℃ |
Environment temperature | 5-95%℃ |
Graphic format supported | BMP, BIF, JAGE,PCX, TGA, TIFF, PLT, CDR, DMG,DXF |
Assistant fitting | exhaust fan and pipe |
Workable | professional thick honeycomb table |
Whole machine power consume | <2250W |
Machine dimension | 2180x1580x1120mm |
Package size | plywood case 2300x1900x1300mm |
Net weight/gross weight | 390kg/440kg |

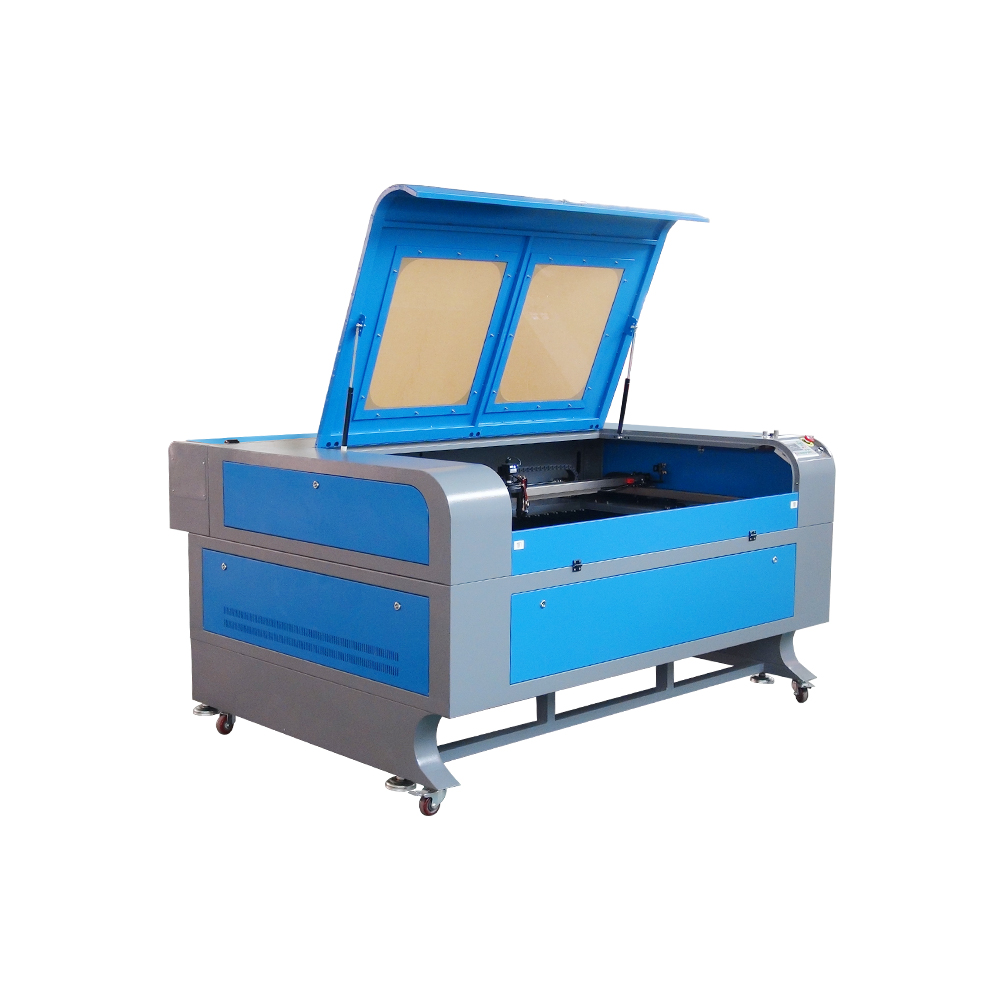

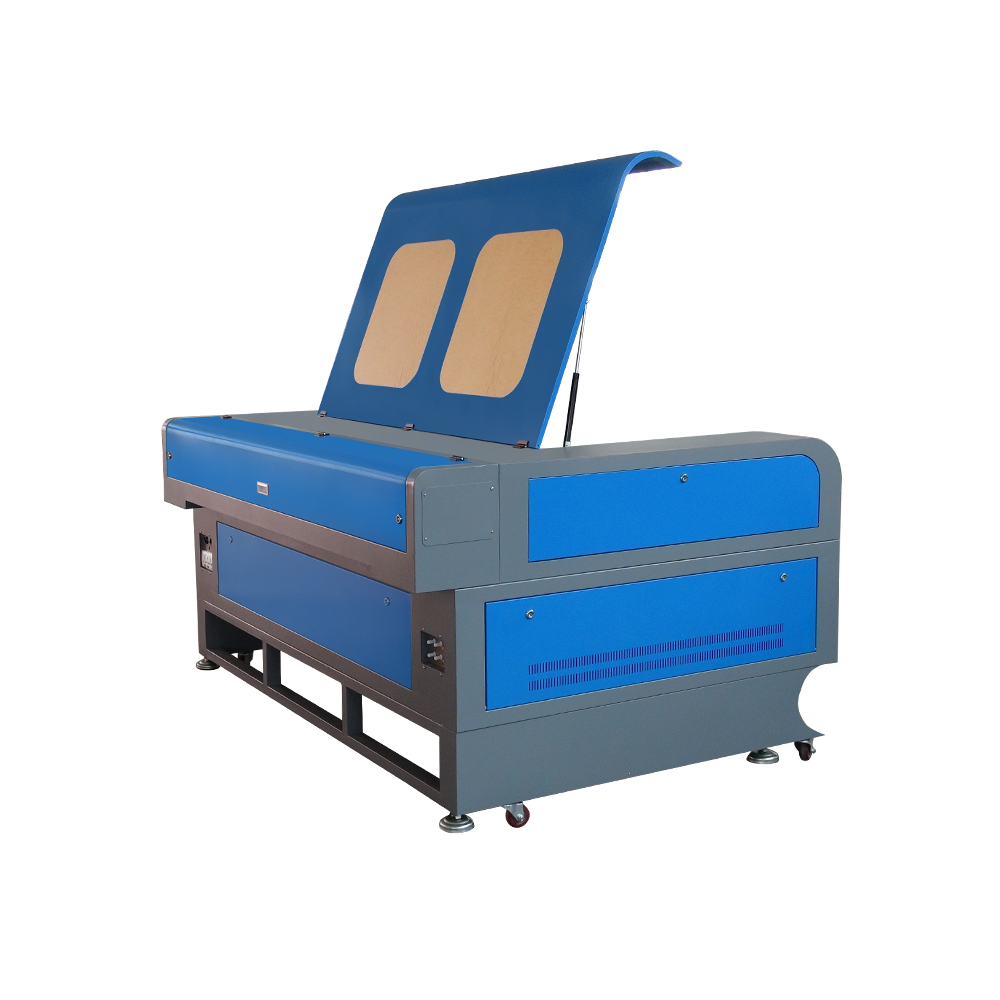

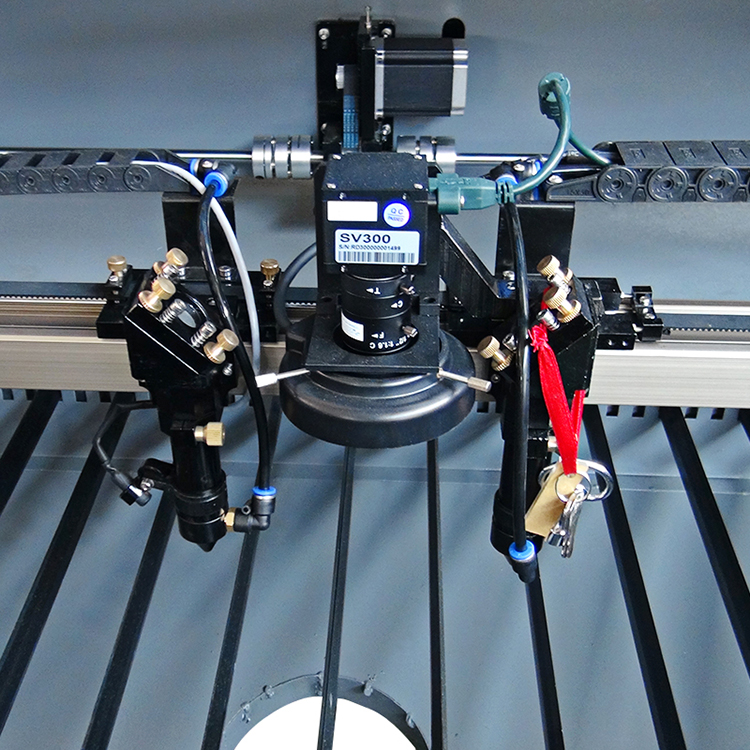

Detailed pictures
sample
